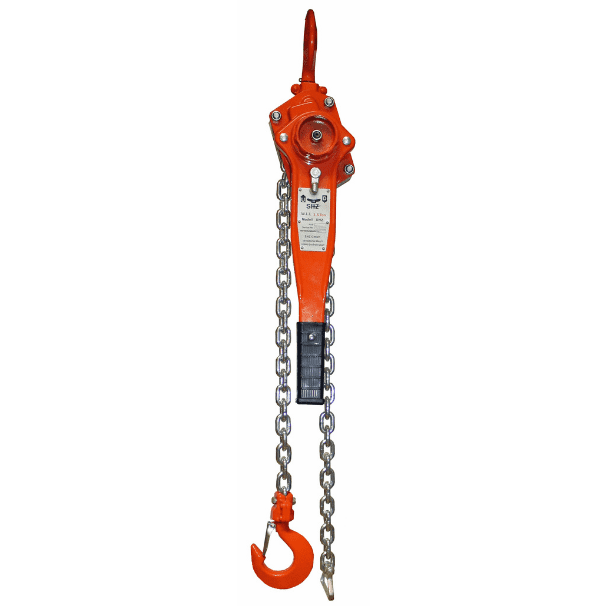

SHZ lever chain hoists
Products
Quality when
it matters
We assemble our SHZ lever hoists according to customer specifications at our location in Germany. And of course deliver we also provide you with the right spare parts for it. According to the applicable BG regulations (BGV D6 and D8), hand tools must at least be checked once a year. We would be happy to support you.
Load hook:
rotatable (incl. fuse)
Load chain:
high-strength and galvanized, according to EN 818-7 (T), with H stamp
Optimal security
Overload test of every assembled lever block before delivery, handwheel with finger protection, stable end stop with handle, time savings thanks to chain free activation, encapsulated construction prevents the ingress of water and dirt
Conforms to the Machinery Directive 2006/42 / EC
Light, compact, yet stable and shockproof construction
Products
Product
properties
| Item number | Load capacity in kg | Hook spacing min. / mm | Standard stroke in m | Number of chain slings | Chain size in mm | Weight in kg |
|---|---|---|---|---|---|---|
| UHZ7,5/1,5 | 750 | 330 | 1.5 | 1 | 6×18 | 7 |
| UHZ15/1,5 | 1,500 | 385 | 1.5 | 1 | 8×24 | 11 |
| UHZ30/1,5 | 3,000 | 485 | 1.5 | 1 | 10×30 | 21 |
| UHZ60/1,5 | 6,000 | 625 | 1.5 | 2 | 10×30 | 31 |
